360° end-of-line inspection

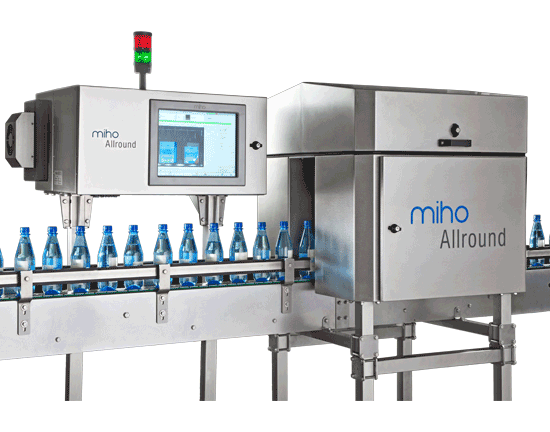

miho Allround
Is the bottle defect-free in its configuration and can thus be sent to the packer? Device for use downstream of the labeller for complete inspection of all features.
Precise 360° inspection of all features of the cap, the labels, the EAN barcode, the lot number and the BBD.
For a final quality inspection of filled and labelled containers by at least 4 cameras to ensure a 360 ° inspection.
Labels can be inspected for the following criteria:
- presence
- accuracy
- correct position
- intact

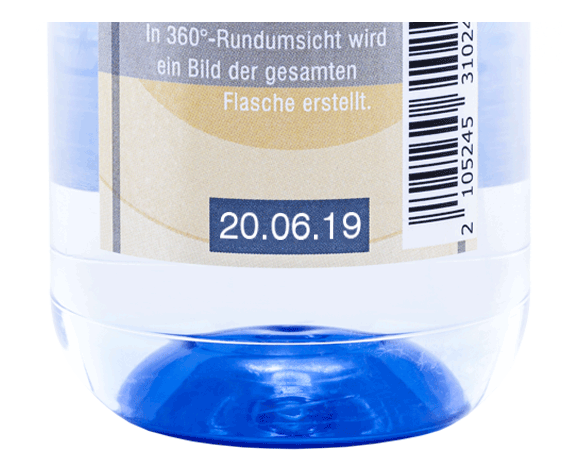

- expiry date present and complete
- expiry date: logical correctness (serial fault detection)
- optional: imprints; ACL: Sorting by comparison with a reference container
Accessories & modifications
- high-resolution FireWire camera technology
- a colour camera records an image of the top side of the cap
- low-power, variable and maintenance-free, high-performance LED lighting in the reflected light process
- evaluation of the camera image through several individually parametrizable evaluation zones
- electronically adjustable height adjustment
- inspection of the top side of the cap
- (imprints: filling and expiry date, logo; cap: presence, colour)
Additional sensors (laser triangulation / profile analysis) as well as evaluation and additional software for controlling the vacuum of filled bottles.
Features:
- profile analysis by using laser triangulation
- necessary hardware and software modification for evaluation for the miho Allround
- the height adjustment is carried out via the miho Allround
- rejection of faulty bottles is carried out via the reject system miho Allround
Additional detection module for the detection of a directly printed date (ink or Laser) on a transparent or opaque PET bottle or on hte closure.
The date is printed directly on the bottle shoulder, on the upper part of the bottle body, or on side of the closure. The height of the liquid level is not relevant here.
By scanning the respective barcode / QR code via the hand scanner, an automatic grade / equipment changeover takes place on the 360° inspection system miho Allround.
Additional detection module for the 360° inspection system miho Allround, for checking the bottle contour based on the shape. The feature must be clearly pronounced.
High speed pusher
miho HSP
Multi-reject system
miho HSPM
Linear Reject System
miho Leonardo M
Segment Reject System miho Leonardo SFM
Additional option for automatic sampling. At the beginning, at the end and in freely selectable, regular intervals during production, an adjustable number of reserve samples can be automatically rejected.
Additionally, samples of an adjustable number can be requested manually at any time.
Software package for the production data acquisition software miho AWeS. All production data, counters and test bottle protocol are logged according to the Weihenstephan standard. For all miho systems based on the miho VIDIOS® or miho MASTER® platform.
Software package for the remote visualization of the operating condition, the parameter and the camera images on an authorized computer. Monitoring of e.g. counters and malfunctions. Monitoring and remote control of the inspection machine by a miho service engineer, re-entry and optimization of the inspection parameters, exact and fast analysis of errors.
