Empty can inspection

miho TOP-Cam

Free-flow camera lighting unit for inspecting empty, opaque containers with a cylindrical shape.

For inspecting empty drinks cans, fluted cans or cans for cosmetics and homecare.

  • Cans made of aluminium or tinplate, all shapes and sizes

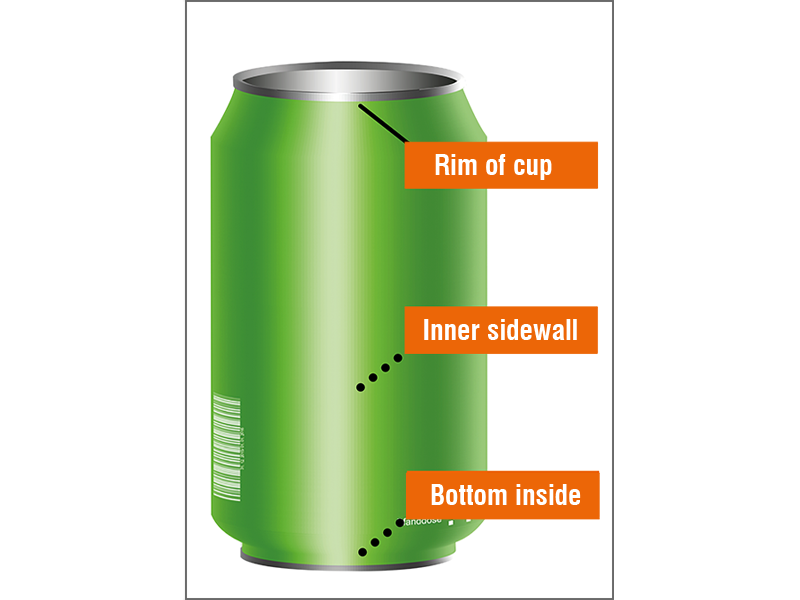

  • Reliably detects defects or contamination on the rim, base and even on the inner side wall
  • Low space requirement

For checking for damage and soiling around the neck finish, on the inside or on the base.
Bottoms with closures can also be checked.

It is not necessary to align the containers.

The inspection is carried out using a special two-camera system, which increases the focal range and enables precise inspection of even taller containers.
Colour cameras and an application-specific high-performance LED lighting system are used.

The empty containers can be inspected for the following criteria, among others:

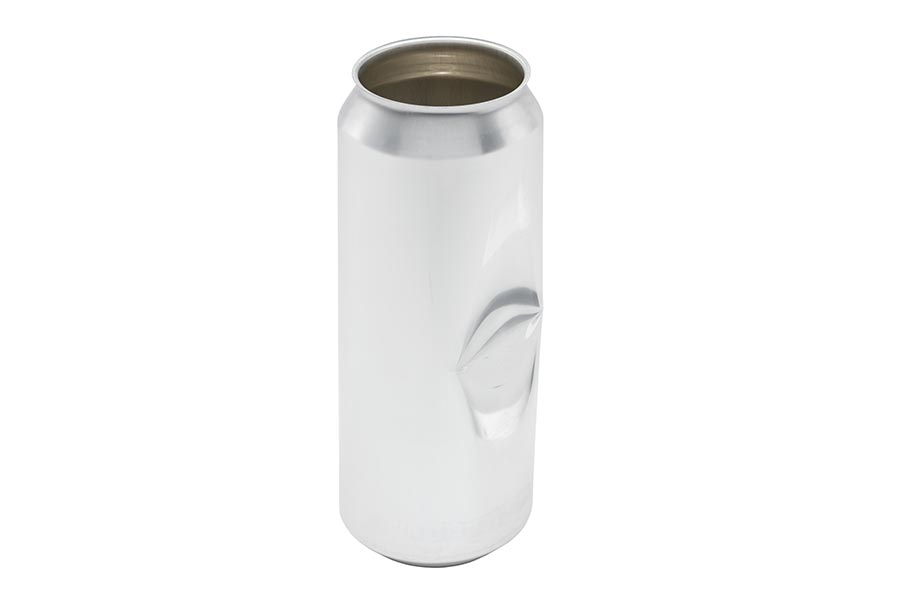

  • Deformation, such as dents

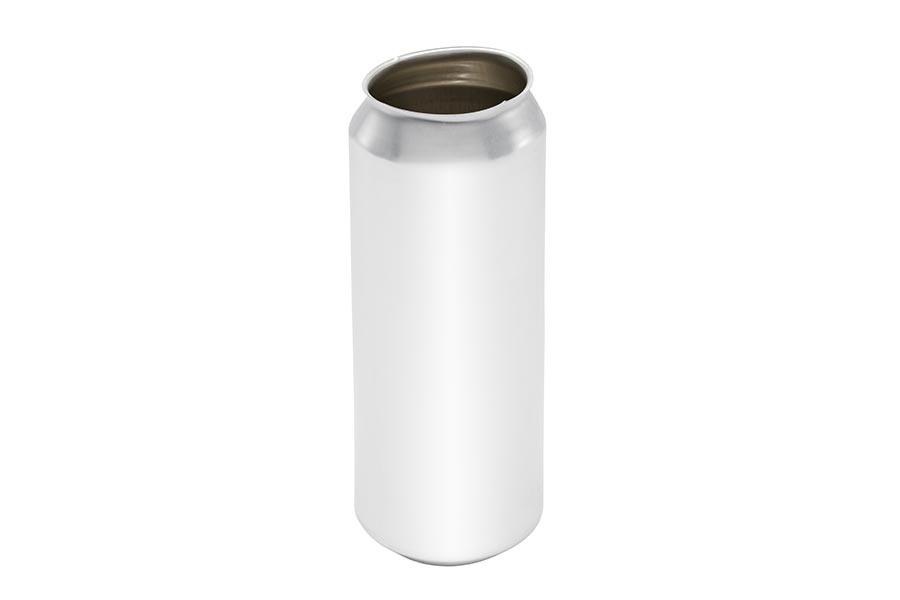

  • Ovality
  • Chipping
  • Scratches and cracks

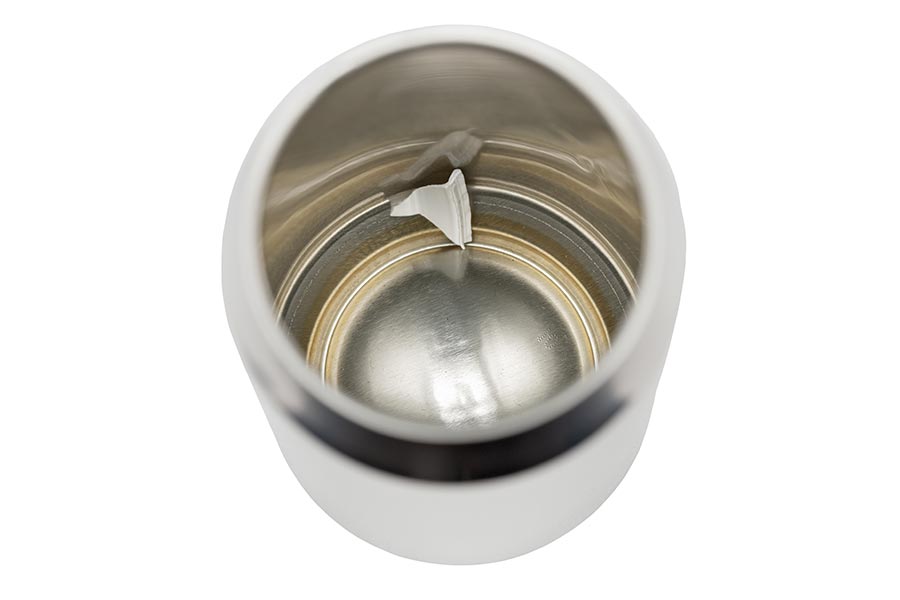

  • Contamination
  • Foreign bodies
contact us
Getränkedose für Tolp-Cam
Leerdosen-Inspektion miho TOP-Cam
Dose mit beschädigtem Rand
Can with damaged rim
Dose mit Verschmutzung am Boden
Contamination on bottom of can

Accessories & extensions

High speed pusher
miho HSP

  • Pneumatic pusher
  • Up to 100 000 containers/h
  • Including reject monitoring

Multi-reject system
miho HSPM

  • Linear drive
  • Up to 72 000 containers/h
  • Very wide range of containers

Linear Reject System
miho Leonardo M

  • Magneto-mechanical
  • Gearless transmission drive
  • Smooth and precise

Segment Reject System miho Leonardo SFM

  • Upright rejection on parallel track
  • Elektro-magnetic actuator, no compressed air
  • Compact design

Software package for the production data acquisition software miho AWeS. All production data, counters and test bottle protocol are logged according to the Weihenstephan standard. For all miho systems based on the miho VIDIOS® or miho MASTER® platform.

Software package for the remote visualization of the operating condition, the parameter and the camera images on an authorized computer. Monitoring of e.g. counters and malfunctions. Monitoring and remote control of the inspection machine by a miho service engineer, re-entry and optimization of the inspection parameters, exact and fast analysis of errors.

miho TOP Cam PDFDownload
