Fill level control

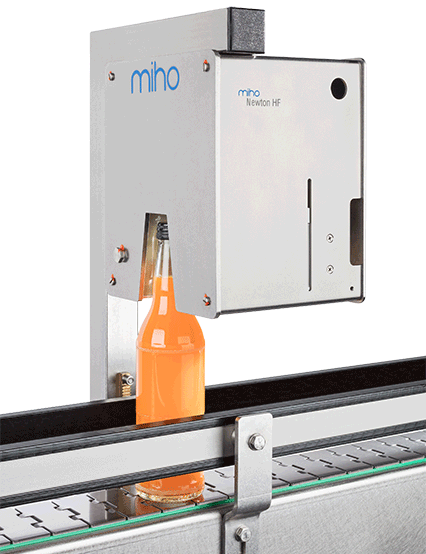

miho Newton HF 2
Control of underfilling AND overfilling in one device, bio-compatible: Control device based on a high-frequency measuring method for installation after the filler and capper and for checking for the correct fill level.
To check the fill level for any underfilling and in a limited way also overfilling in transparent glass and PET bottles, easy handling.
The inspection is carried out by using a high-frequency measurement method (HF). The system compensates for any fluctuations in temperature through self-calibration.
Comprehensive statistics for individual types of faults are available. A serial fault detection is implemented. Connection to an external production data acquisition system is possible.
The inspection head can be adjusted when changing the bottle type by using the handwheel height adjustment. The point of installation is normally at the outfeed of the filler, as long as it is a non-foaming product, or at the outfeed of the labelling machine.
Preferable HF measuring method suitable for metallised lables.
Not suitable for swing top bottles, long caps, tinfoil and highly viscous products and spirits.
Accessories & modification
Filler Monitor miho FM 2, stainless steel electronic cabinet, to locate incorrect filling due to defect filling valves.
Filler monitor
miho FM 2
Additional sensor for bottles which have drawn in water after the re-cooler with a light barrier. Incl. height adjustment to adjust it to different bottle heights.
Automatic request of the specially prepared and marked test bottles to check the flawless operation of the inspection machine. The test bottles are marked with reflection foil (One sheet of reflection foil 230mm x 100mm is included. The test cycle of the test bottle request is based on time and freely adjustable. Free selectable signal output for the test bottle request. Logging of the last test bottle run in the inspection system and, as an option, in the production data acquisition software miho Awes, incl timestamp (not included).
To detect the presence of a metal cap (crown cork, screw cap) via an inductive proximity switch. Including height adjustment for different bottle heights.
For detecting the presence of a plastic cap by means of a width measurement of the cap diameter. Suitable for glass bottles and PET bottles. Including height adjustment for different bottle heights.
Additional sensors to record and inspect the presence of natural cork by means of a light sensor. Including height adjustment for different bottle heights.
High speed pusher
miho HSP
Multi-reject system
miho HSPM
Linear Reject System
miho Leonardo M
Segment Reject System miho Leonardo SFM
Software package for the production data acquisition software miho AWeS. All production data, counters and test bottle protocol are logged according to the Weihenstephan standard. For all miho systems based on the miho VIDIOS® or miho MASTER® platform.
Software package for the remote visualization of the operating condition, the parameter and the camera images on an authorized computer. Monitoring of e.g. counters and malfunctions. Monitoring and remote control of the inspection machine by a miho service engineer, re-entry and optimization of the inspection parameters, exact and fast analysis of errors.
