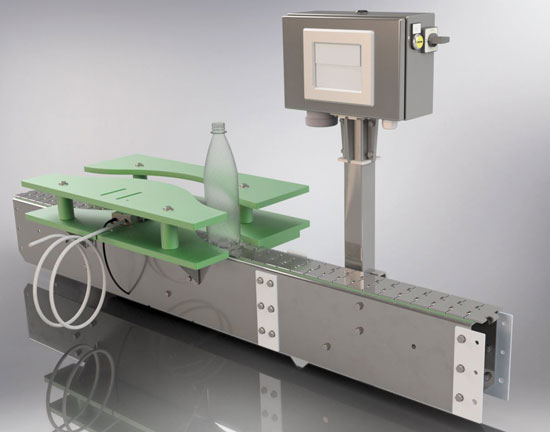

Residual liquid detector
miho LC 2
A must in every refillable bottle line: health-endangering cleaning residues such as caustic, left in the bottle after washing are reliably detected.
Requires little space and can be easily retrofitted. Ideal as a supplement behind the empty bottle inspector or alone as an entry-level device in the small filling line.
Very accurate inspection of the bottle for caustic residual liquids after the washing machine and before the filler. Wetting through caustic solution will already be detected as a fault. Water residues are strictly distinguished from caustic residues. The system is operated via the LC 2 Basic system (Evaluation unit).
Upon detecting a bottle that is wetted with caustic solution, a floating signal is emitted, which, for example, activates the bottle stopper or a line shutdown.
Accessories & modifications
The bottle base is inspected by an additional sensor for any metal residues in the bottle, such as for example, crown corks. The bottle is thereby forced out through a plastic curve, in which the sensor system is housed (below the bottle), to prevent any interference by the conveyor belt.
The bottle neck is inspected by an additional sensor for any metal residues in the bottle neck, such as for example, crown corks.
Very accurate inspection of the filled bottle for lost filling tubes by means of inductive sensor measurement technology.
When a bottle with a filling tube is detected, a floating signal is emitted, which, for example, activates the bottle stopper or a line shutdown through the base unit. In addition, the operator is informed by an optical or acoustic signal (base unit).
Automatic request of specially prepared and marked test bottles to check that the residual liquid detection and the optional metal detection at the bottle base and neck is functioning properly.
The test cycle of the test bottle request takes place according to a particular time and can be set as required. Documentation of the test results in conjunction with miho AWeS.
High speed pusher
miho HSP
Multi-reject system
miho HSPM
Linear Reject System
miho Leonardo M
Segment Reject System miho Leonardo SFM
Software package for the production data acquisition software miho AWeS. All production data, counters and test bottle protocol are logged according to the Weihenstephan standard. For all miho systems based on the miho VIDIOS® or miho MASTER® platform.
Software package for the remote visualization of the operating condition, the parameter and the camera images on an authorized computer. Monitoring of e.g. counters and malfunctions. Monitoring and remote control of the inspection machine by a miho service engineer, re-entry and optimization of the inspection parameters, exact and fast analysis of errors.
