Filling pipe detection miho MX

Control device based on X-ray technology for detecting foreign metal objects in the beverage container.
For use after the filler and capper, also for opaque bottles or metal cans.

Inspection head, using x-ray technologie to check for metal foreign bodies like filling tubes in filled and closed beverage cans (aluminium or steel cans) or bottles. Including hand wheel height adjustment.

The measurement is based on an X-ray technology especially developed for this purpose. Minimum radiation exposure, since pulsed X-ray radiation is only generated at the short moment of measurement. The radiation emission is typically below the naturally occurring levels in enclosed spaces.

Comprehensive statistics of faults are available. Connection to an external production data acquisition system is possible.

fries Zeichnungen aller Flaschen die inspeziert werden können
Fries zeichnungen aller Flaschen, die inspeziert werden können

Accessories & modifications

Automatic request of the specially prepared and marked test bottles to check the flawless operation of the inspection machine. The test bottles are marked with reflection foil (One sheet of reflection foil 230mm x 100mm is included. The test cycle of the test bottle request is based on time and freely adjustable. Free selectable signal output for the test bottle request. Logging of the last test bottle run in the inspection system and, as an option, in the production data acquisition software miho Awes, incl timestamp (not included).

To detect the presence of a metal cap (crown cork, screw cap) via an inductive proximity switch. Including height adjustment for different bottle heights.

For detecting the presence of a plastic cap by means of a width measurement of the cap diameter. Suitable for glass bottles and PET bottles. Including height adjustment for different bottle heights.

miho hsp

High speed pusher
miho HSP

  • Pneumatic pusher
  • Up to 100 000 containers/h
  • Including reject monitoring
miho hspm

Multi-reject system
miho HSPM

  • Linear drive
  • Up to 72 000 containers/h
  • Very wide range of containers
miho leonardo m

Linear Reject System
miho Leonardo M

  • Magneto-mechanical
  • Gearless transmission drive
  • Smooth and precise
miho Leonardo SFM

Segment Reject System miho Leonardo SFM

  • Upright rejection on parallel track
  • Elektro-magnetic actuator, no compressed air
  • Compact design

Simple control of the presence of the label directly in the labeller: Via light sensor, requires little space for installation and can be retrofitted to almost any labeller.

miho ec2

Label control
miho EC 2

  • Up to 12 sensors
  • In or behind the labeller
  • Swing top alignment detection

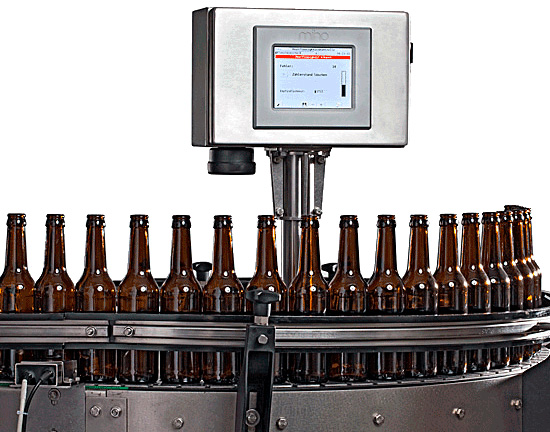

Filler Monitor miho FM 2, stainless steel electronic cabinet, to locate incorrect filling due to defect filling valves.

miho fm2

Filler monitor
miho FM 2

  • Filler monitoring
  • Localisation of faulty valve
miho nop3

Fill Level Control
miho Newton
Optics 3

  • Precision fill level measurement
  • Very solid & low maintenance
  • Date/cap detection
miho newton hf2

Fill Level Control
miho Newton HF 2

  • Compact construction
  • High frequency technology
  • Easy to operate
miho newton ir2

Fill Level Control
miho Newton IR 2

  • Infrared technology
  • Compact construction
  • Any filling product
miho newton x2p

Fill Level Control
miho Newton X2P

  • Pulsed X-ray technology
  • Low radiation
  • Cap detection possible
miho newton x2z

Fill Level Control
miho Newton X2Z

  • Line detector
  • Pulsed X-ray technology
  • Low radiation

Software package for the production data acquisition software miho AWeS. All production data, counters and test bottle protocol are logged according to the Weihenstephan standard. For all miho systems based on the miho VIDIOS® or miho MASTER® platform.

Software package for the remote visualization of the operating condition, the parameter and the camera images on an authorized computer. Monitoring of e.g. counters and malfunctions. Monitoring and remote control of the inspection machine by a miho service engineer, re-entry and optimization of the inspection parameters, exact and fast analysis of errors.
